AudioControl

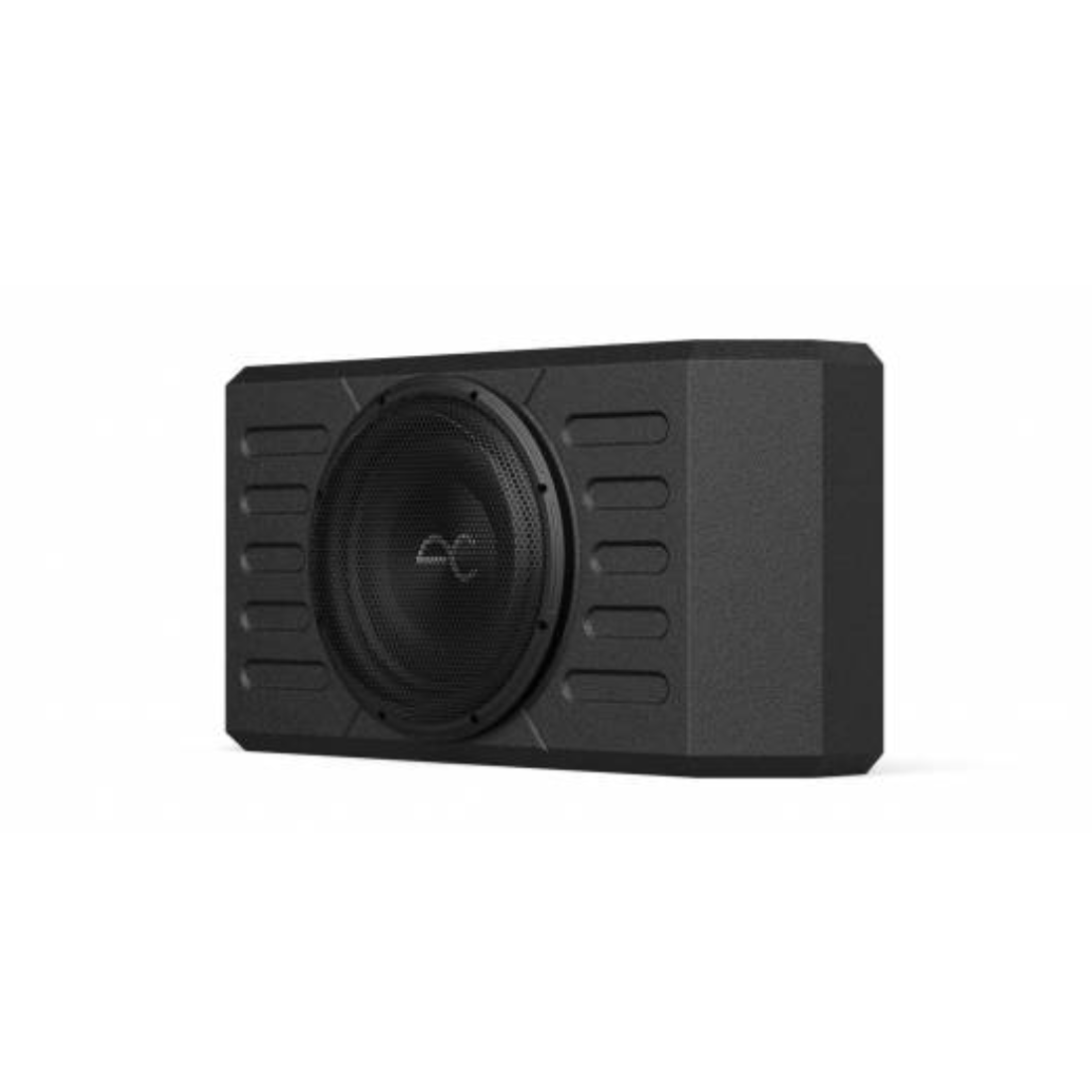

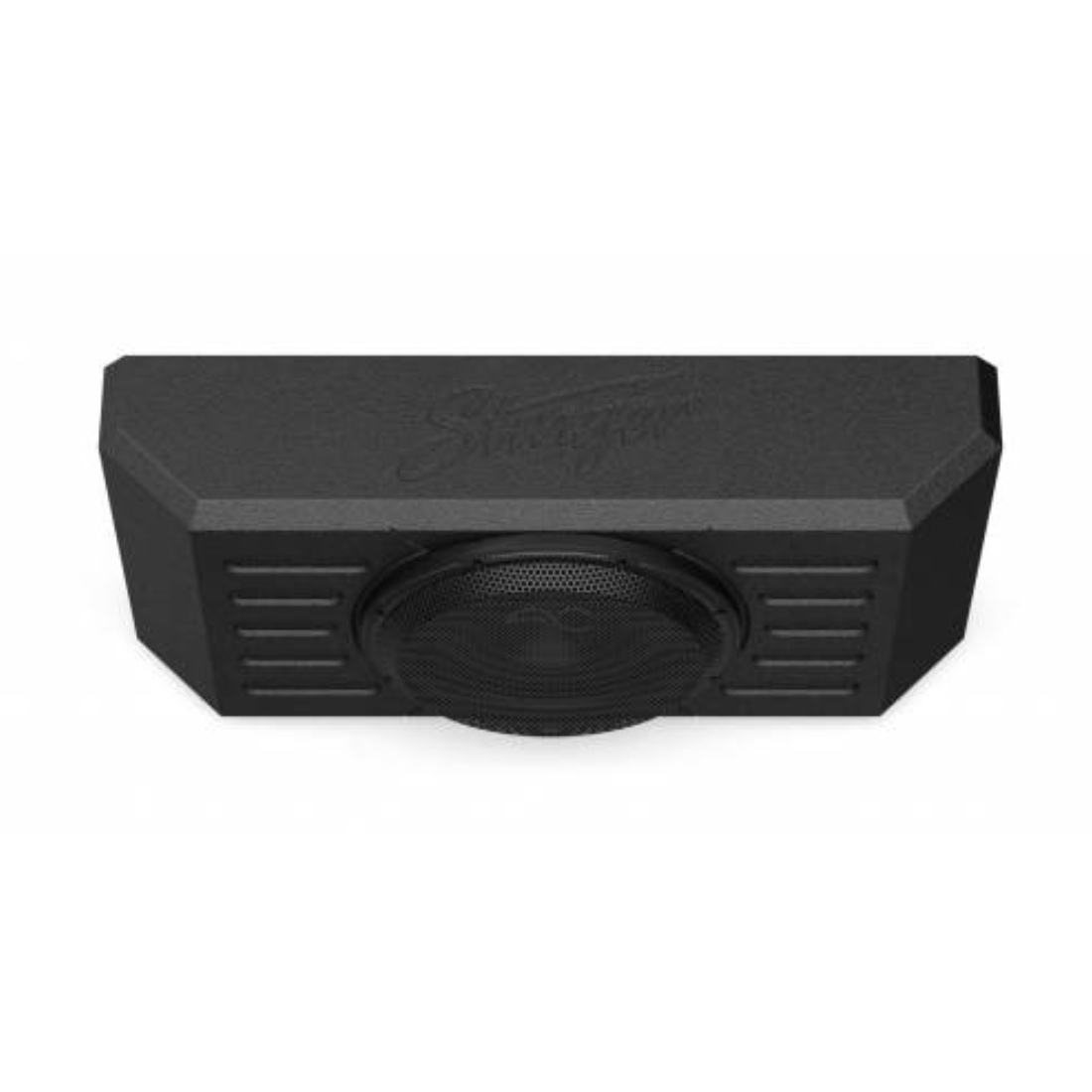

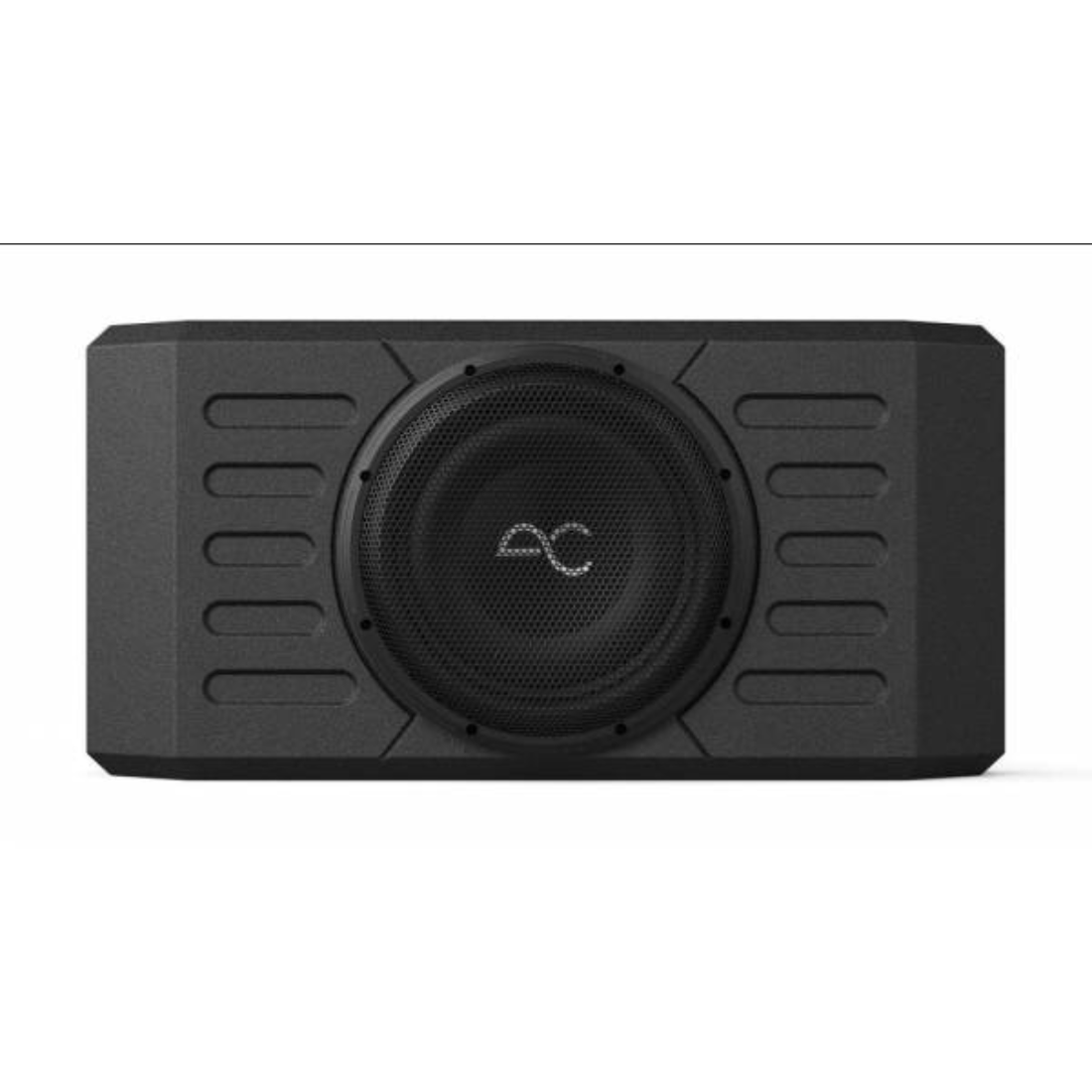

AudioControl TXJWB12 12" Swing Gate Subwoofer Enclosure for Jeep JK/JL 2007-23
AudioControl TXJWB12 12" Swing Gate Subwoofer Enclosure for Jeep JK/JL 2007-23
Regular price
$449.00 USD
Regular price
Sale price
$449.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
AUDIO CONTROL TXJWB12
12-inch Swing Gate Mount Subwoofer Enclosure for Jeep JK/JL 2007-2023
Built tough and made to fit your Jeep Wrangler’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. AudioControl designed a subwoofer specifically for this enclosure to maximize performance and deliver deep, accurate bass. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.
Subwoofer Features:
- 12" 2Ω Space Series Subwoofer
- 200W-600W Power Range (400W Ideal)
- Weather-Resistant Design
- Fiber Matrix Injection Molded Polypropylene Cone for Optimum Sound Reproduction
- Durable Isoprene Polymer Surround
- Powder-Coated Frame
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
Enclosure Features:
- Roadkill-Armor Coat
- Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
- Weather-Resistant for Harsh Outdoor Environments
- Sound Dampening Properties for Resonance Reduction
- Scratch, Crack, and Peel-Resistant
- Chemical and Stain-Resistant
- Impact Absorption
- UV Protection
- Provides Leak and Corrosion Prevention
- Heavy Duty 11-Layer High-Density Plywood Construction
- Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
- Durable, Coated Steel Subwoofer Grille for Extra Protection
Thermal & Mechanical Elements:
- 2.5” Black Anodized Voice Coil Former for Superior Heat Dissipation
- Air-Cooled Ventilated Motor Topology for Providing Optimal Thermal Efficiency
- High Tension Stitched Lead Wires for Increased Flexibility at High Excursion
- Shallow Cone Design
- Efficient Motor Design via Magentic FEA Technology
- Micro Level Bonding Adhesive for Increased Strength
- High-Density Ferrite Magnet
- Push Type Terminals Provide Consistent Tension For a Reliable Connection
- Grille Included
- High-Quality Mounting Hardware
Specifications:
- Speaker Model: SPC-12S2
- Subwoofer Size: 12”
- Voice Coil: Single 2 ohm
- DC Resistance (Re): 2 ohm
- Sensitivity 1W/M (SPL): 87 dB
- Frequency Response: 20Hz – 250Hz
- RMS Power: 400 watts
- Speaker Displacement: 0.06 cu ft / 1.82 Ltr
- Speaker Weight: 12.5 lbs
Enclosure Dimensions:
- Internal Volume: 0.87 cu ft. / 24.7 Ltr
- Enclosure Weight: 17.5 lbs
- Height: 14in / 35.56cm
- Width: 28.5in / 72.39cm
- Depth: 6.1in / 15.5cm
- Depth (with Speaker & Grill): 7.3in / 18.59cm
* Note: For JK/JKU vehicles with factory subwoofer, remove the factory subwoofer for clearance. Once removed, two OEM replacement subwoofer delete panels can be ordered online or acquired from a local Jeep dealer to retain the OEM look.
