BRAND NEW

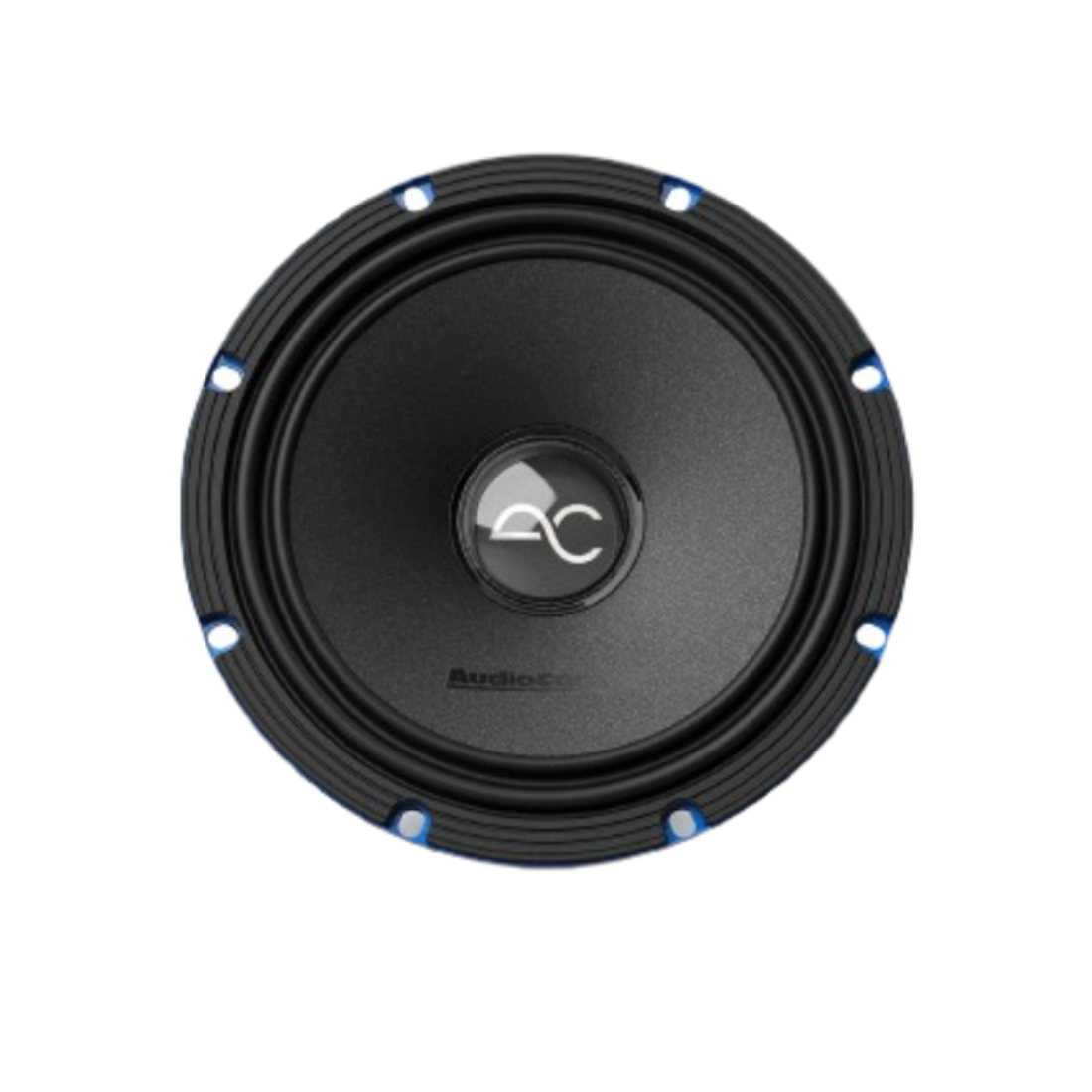

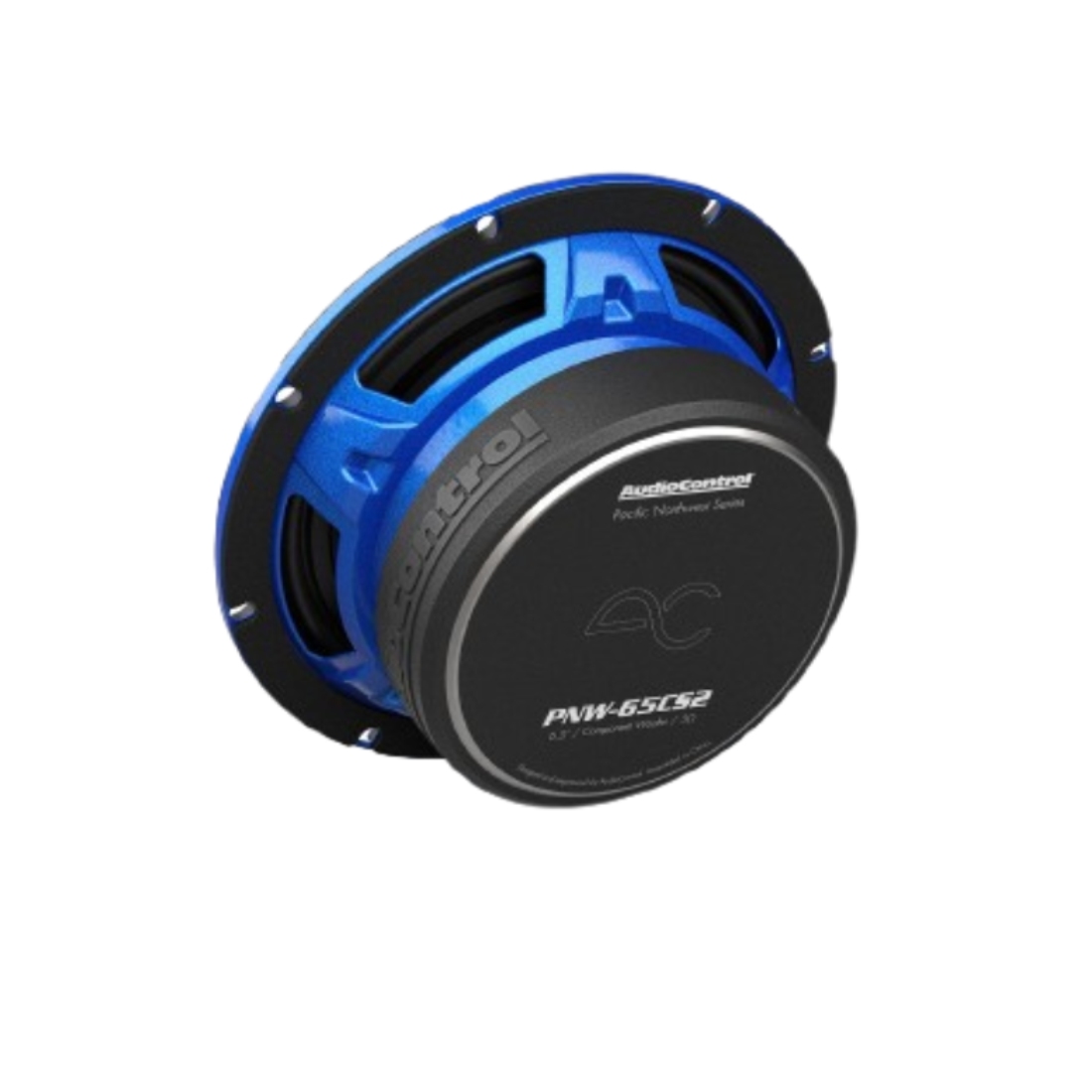

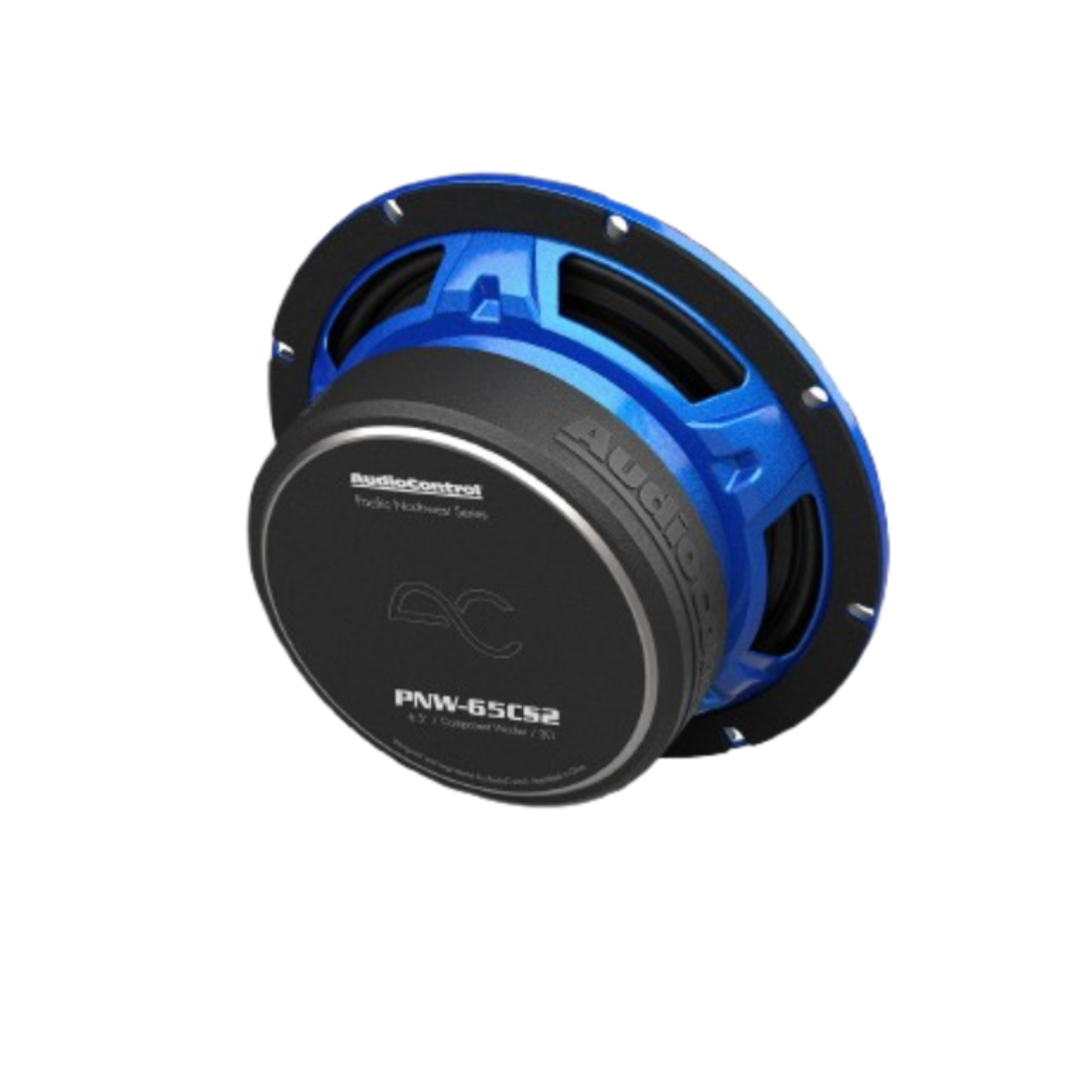

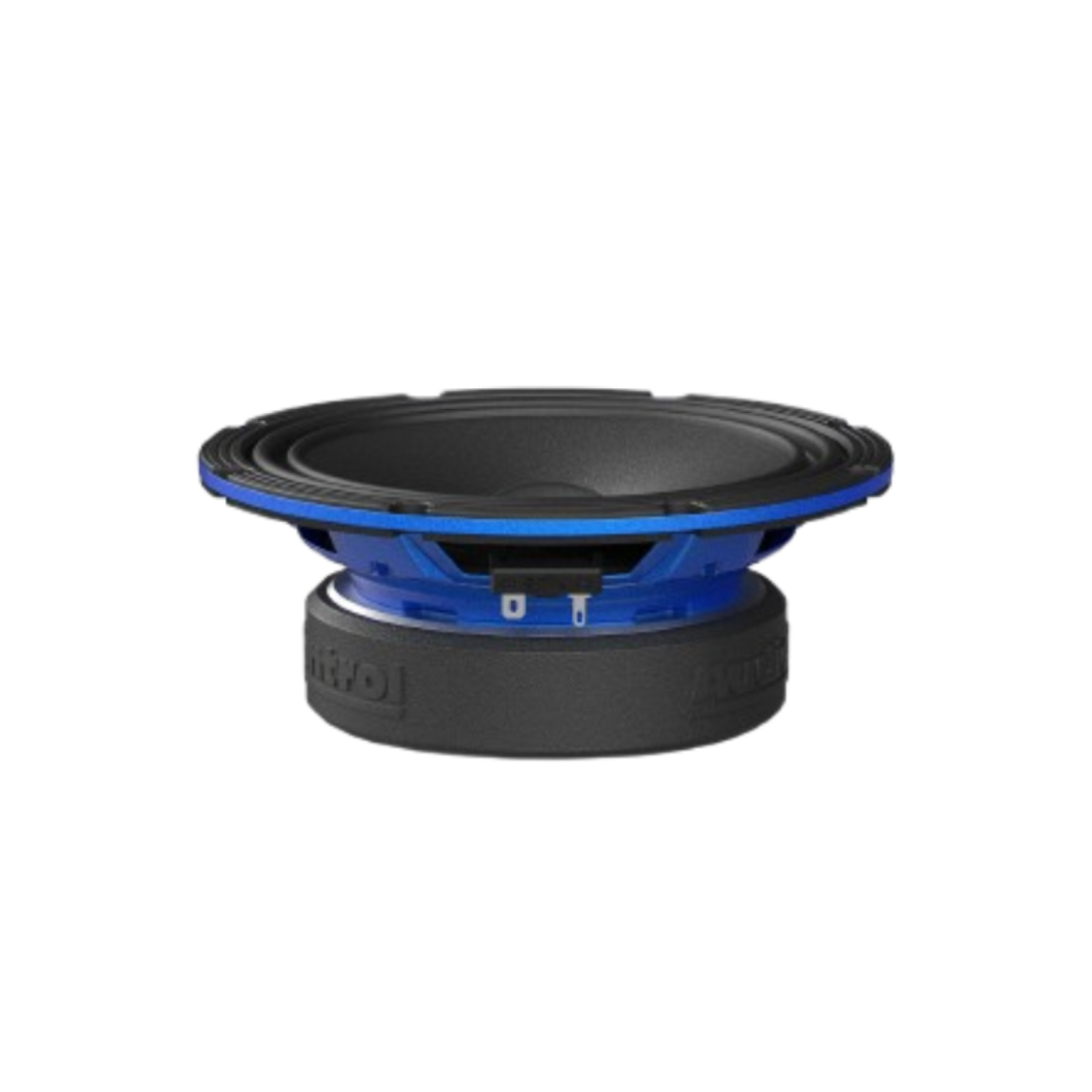

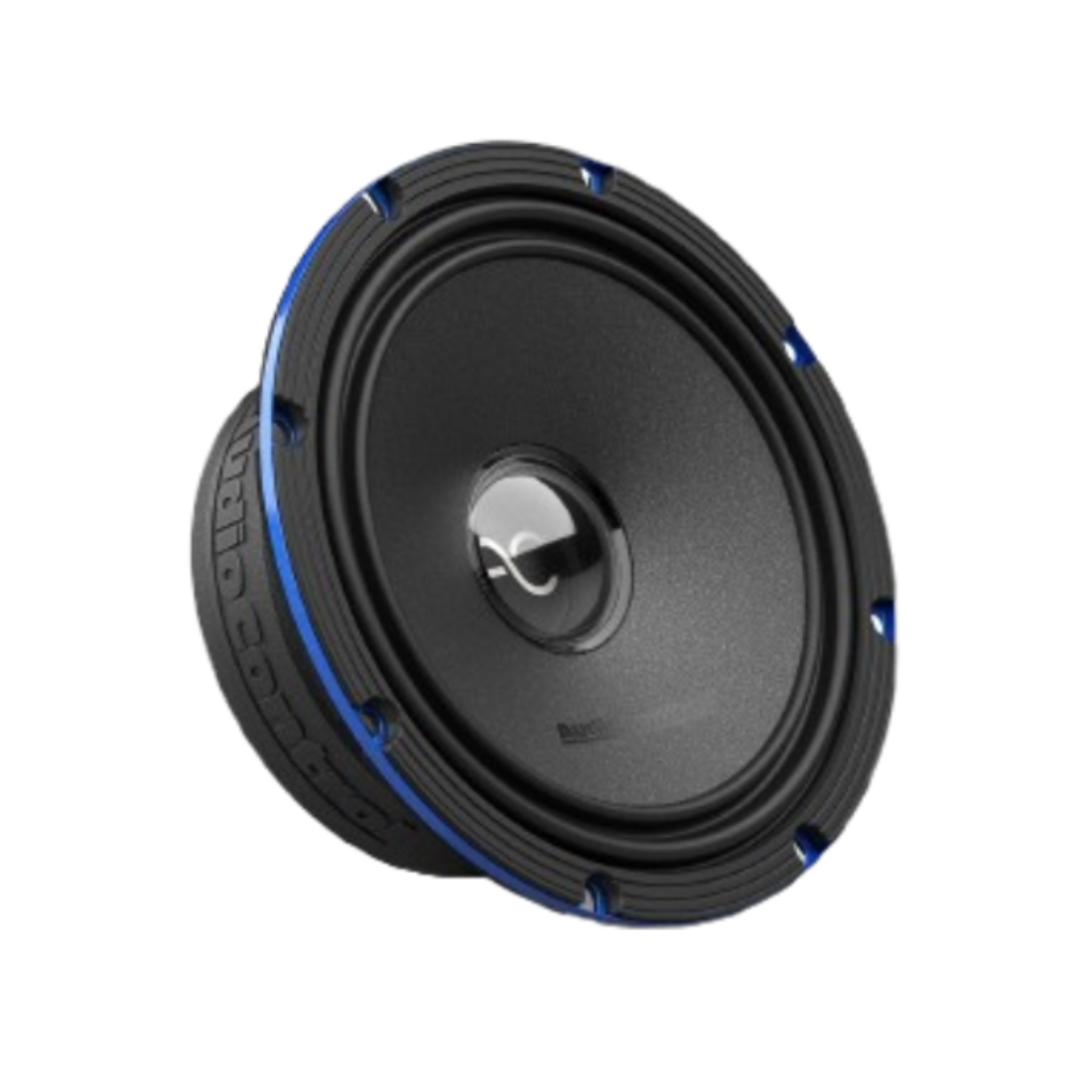

AUDIOCONTROL PNW-65CS2

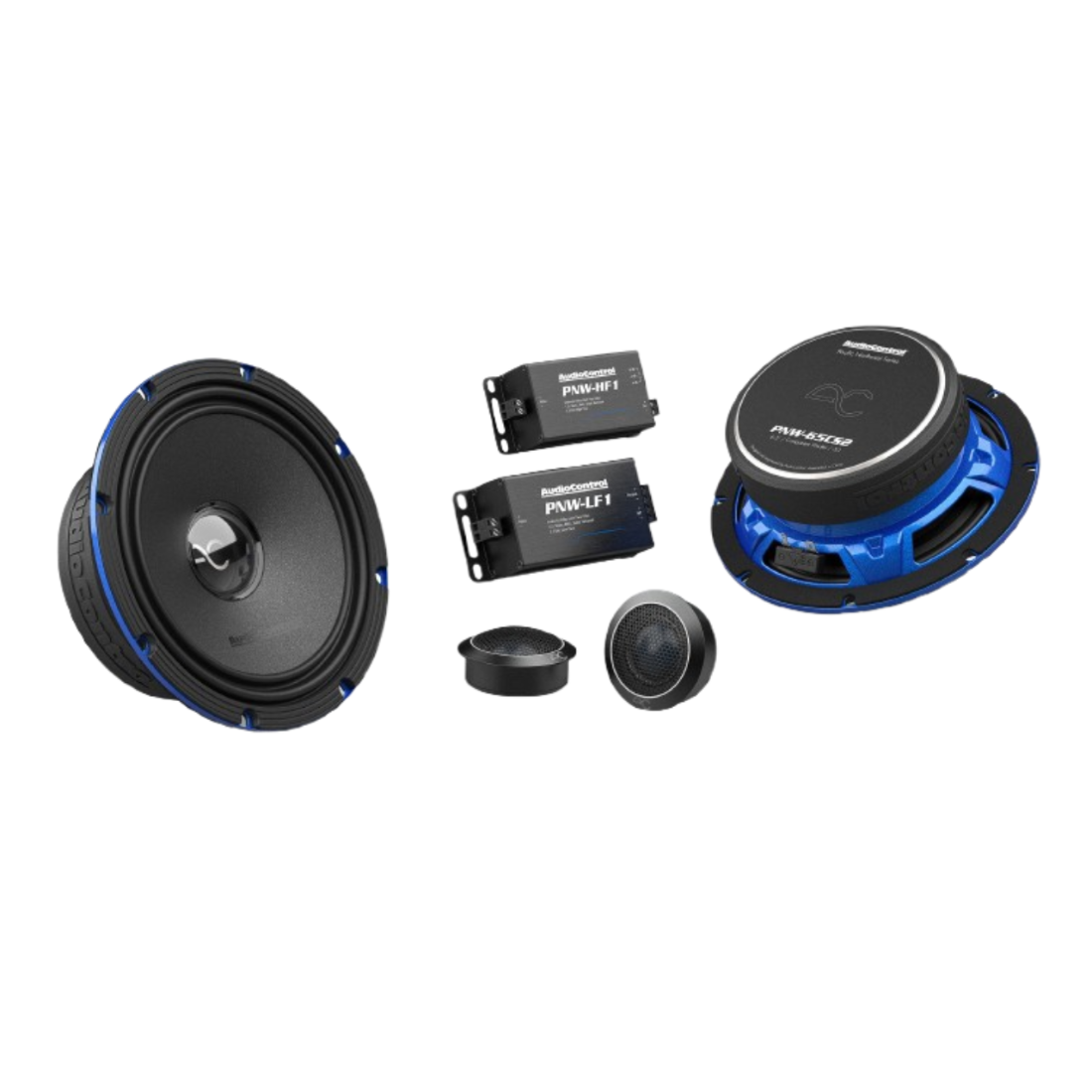

PNW SERIES | 6.5-inch 125 Watts Max High-Fidelity Component Speaker System
Key Features:
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimized sound reproduction
- Rear dampened hybrid silk dome tweeter for extended frequency response
- High-quality mounting hardware included
Specifications:
- Continuous Power Handling (RMS Watts): Min: 75 / Ideal: 100 / Max: 125

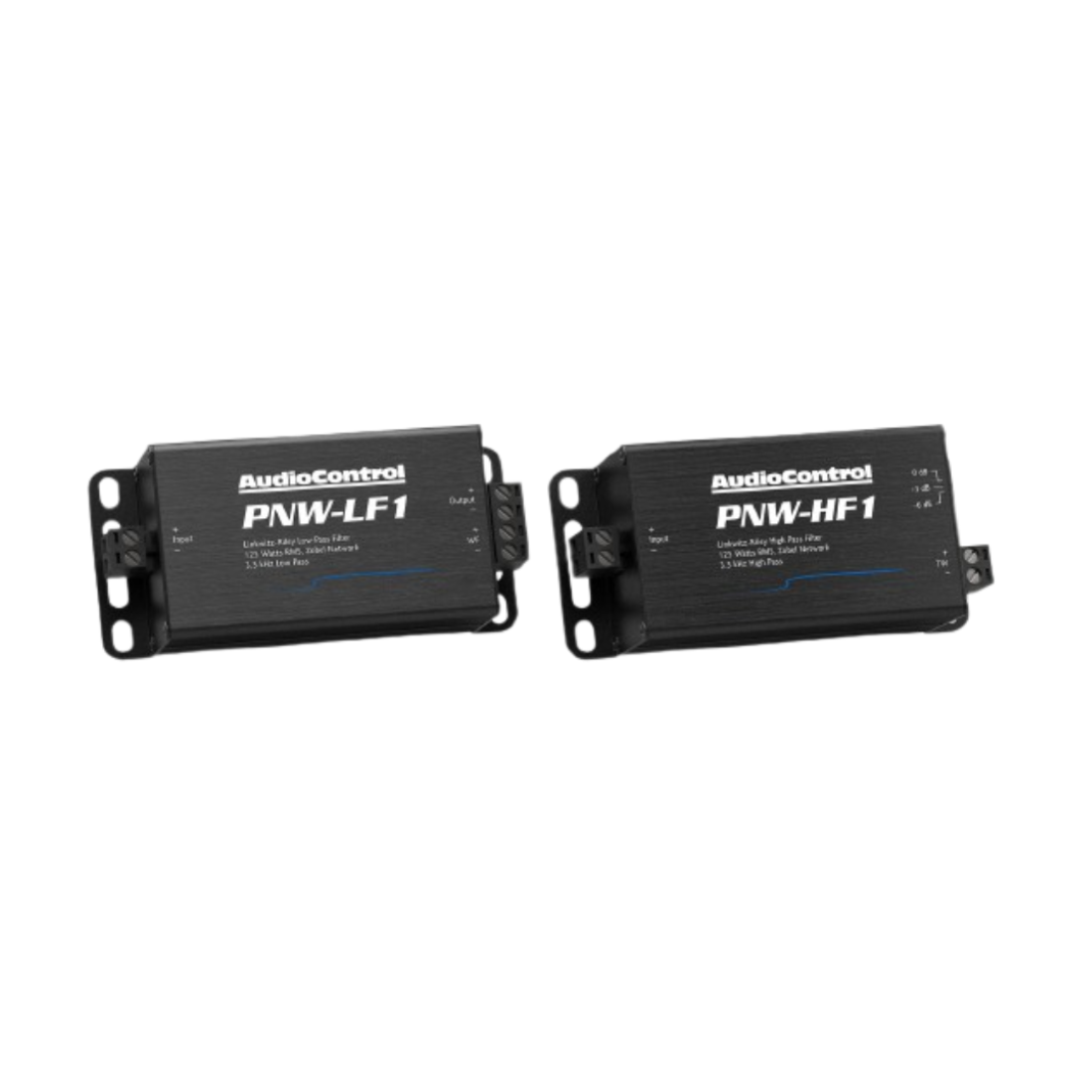

- Crossover Type: 2nd order Linkwitz-Riley
- DC Resistance (Re).: 2.3 ohms
- Filter Type: HP / LP
- System Frequency (Fs) Response: 60-20k Hz
- XO Frequency: 3.5kHz HP / LP
- Slope (Octave): -12 dB
- Tweeter Voice Coil Diameter: 25 mm
- Midrange Voice Coil Diameter: 35 mm
Dimensions:
- Overall Diameter (w/o Grille) 6.5 in / 166 mm
- Cut Out Diameter: 5.59 in / 142 mm
- Mounting Depth: 2.36 in / 60 mm
- Mounting Height (w/o Grille): 0.20 in / 5.2 mm

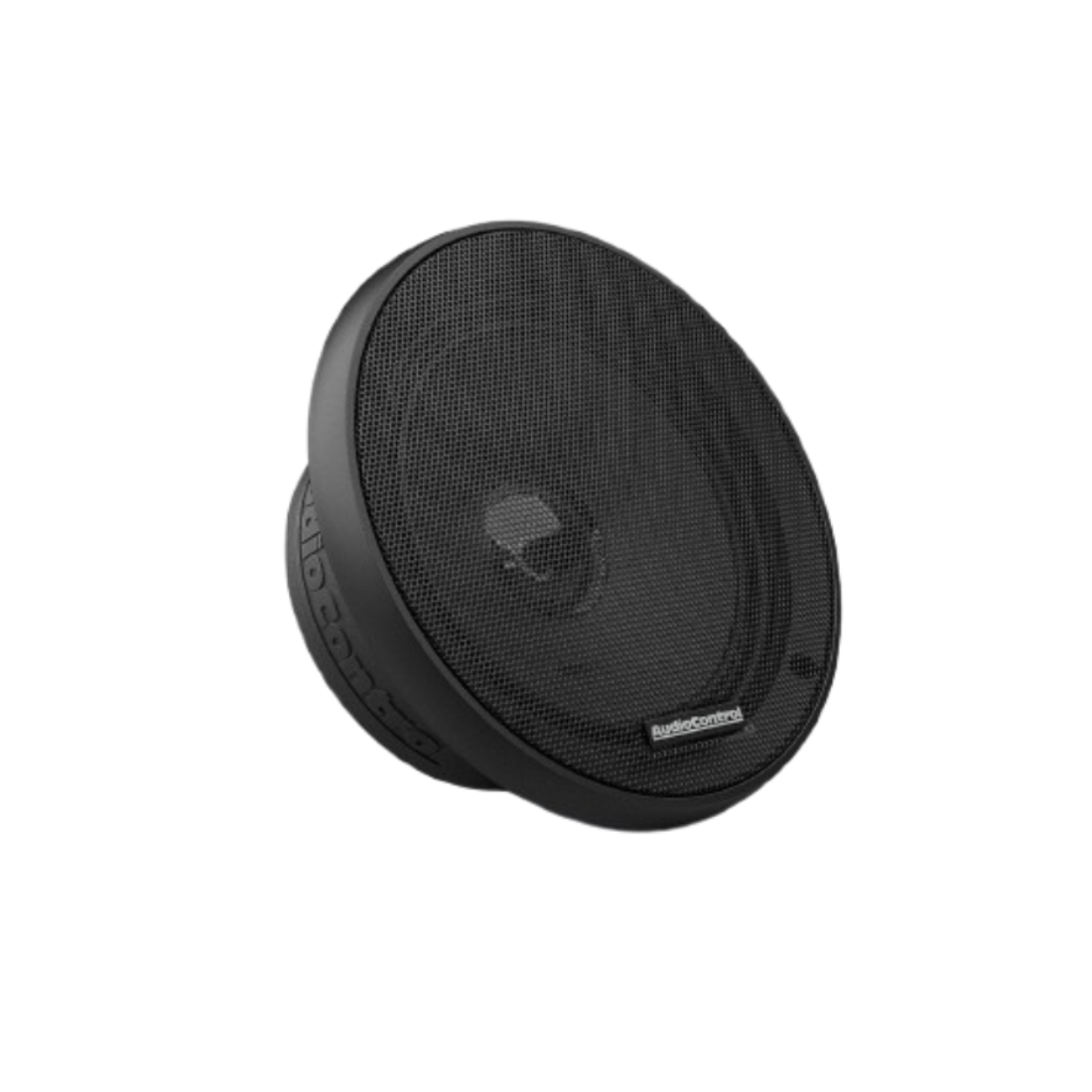

- Mounting Height (w/ Grille): 0.86 in / 22 mm
- Motor Diameter (w/ Cover): 4.6 in / 117 mm
- Grille Overall Diameter: 7.05 in / 179 mm

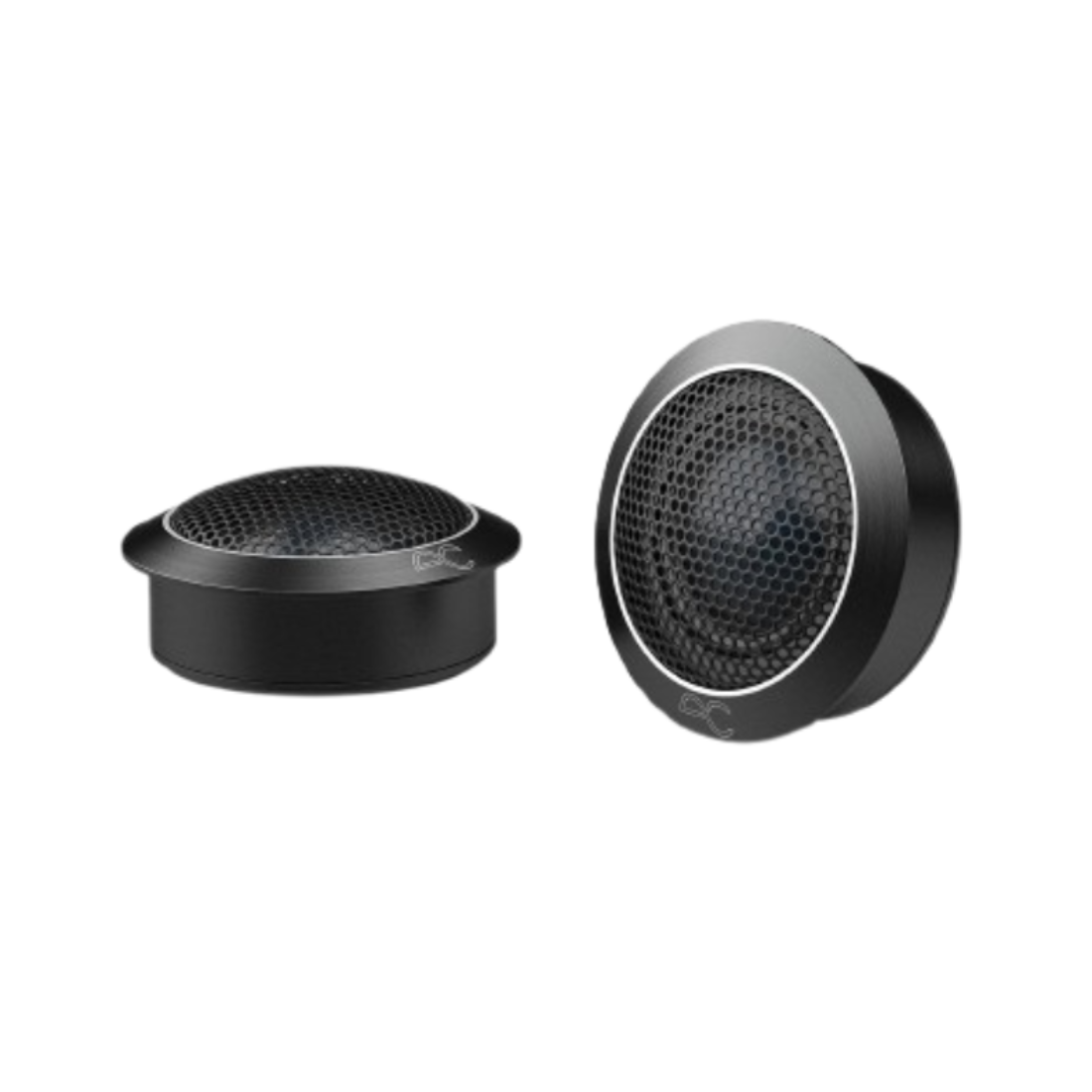

Dimensions (Tweeter):
- Overall Diameter: 2.13 in / 54 mm
- Cut Out Diameter: 1.85 in / 47 mm
- Mounting Depth: 0.63 in / 16 mm
