DS18 SXE-4000.4D/BK 4000W Max 4-Channel Class-D Full-Range Car Amplifier - Black

Name: DS18 SXE-4000.4D/BK 4000W Max 4-Channel Class-D Full-Range Car Amplifier - Black
Brand: DS18
SKU: SXE-4000.4D/BK
Price: 284.95 USD
Availability: InStock

$284.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 SXE-4000.4D/BK

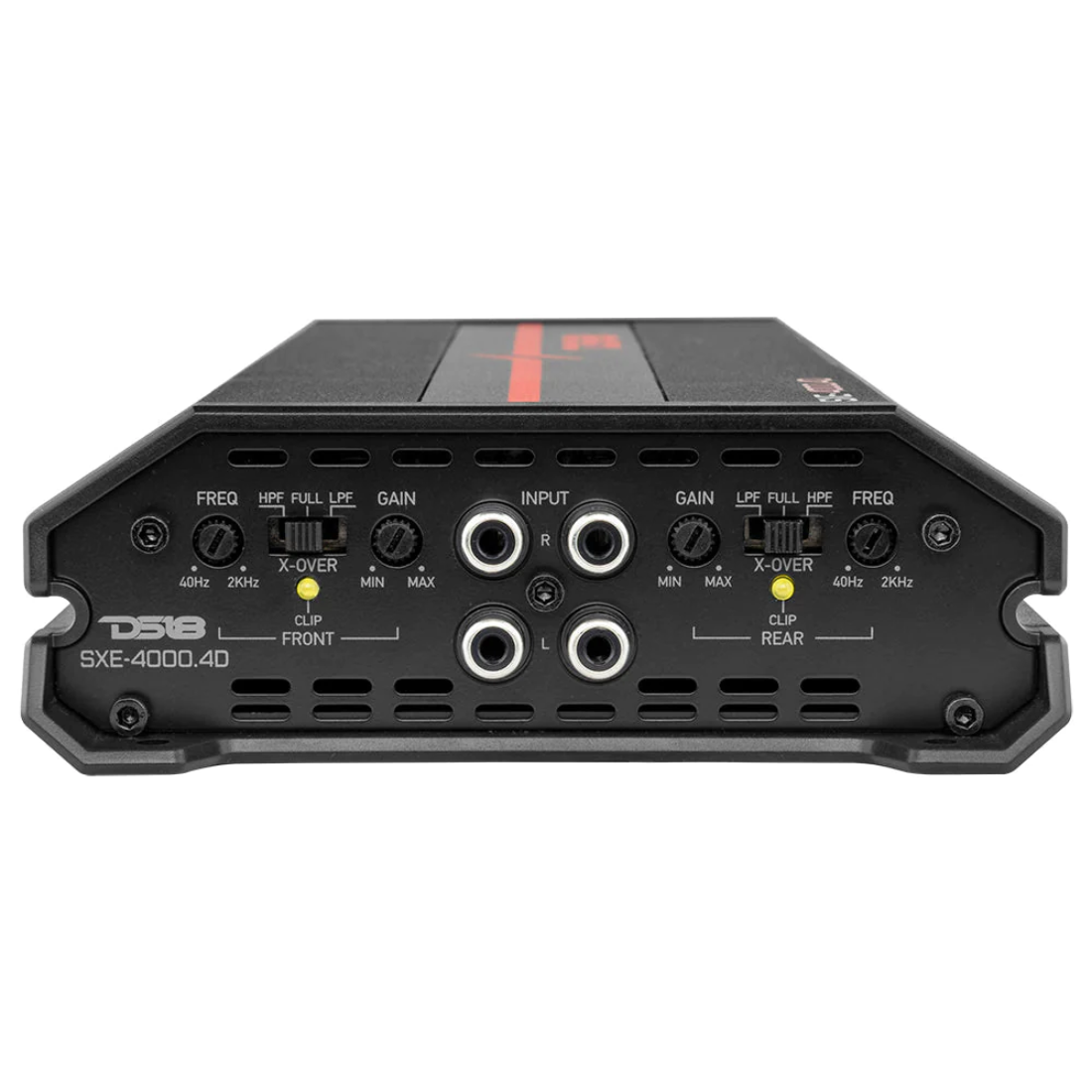

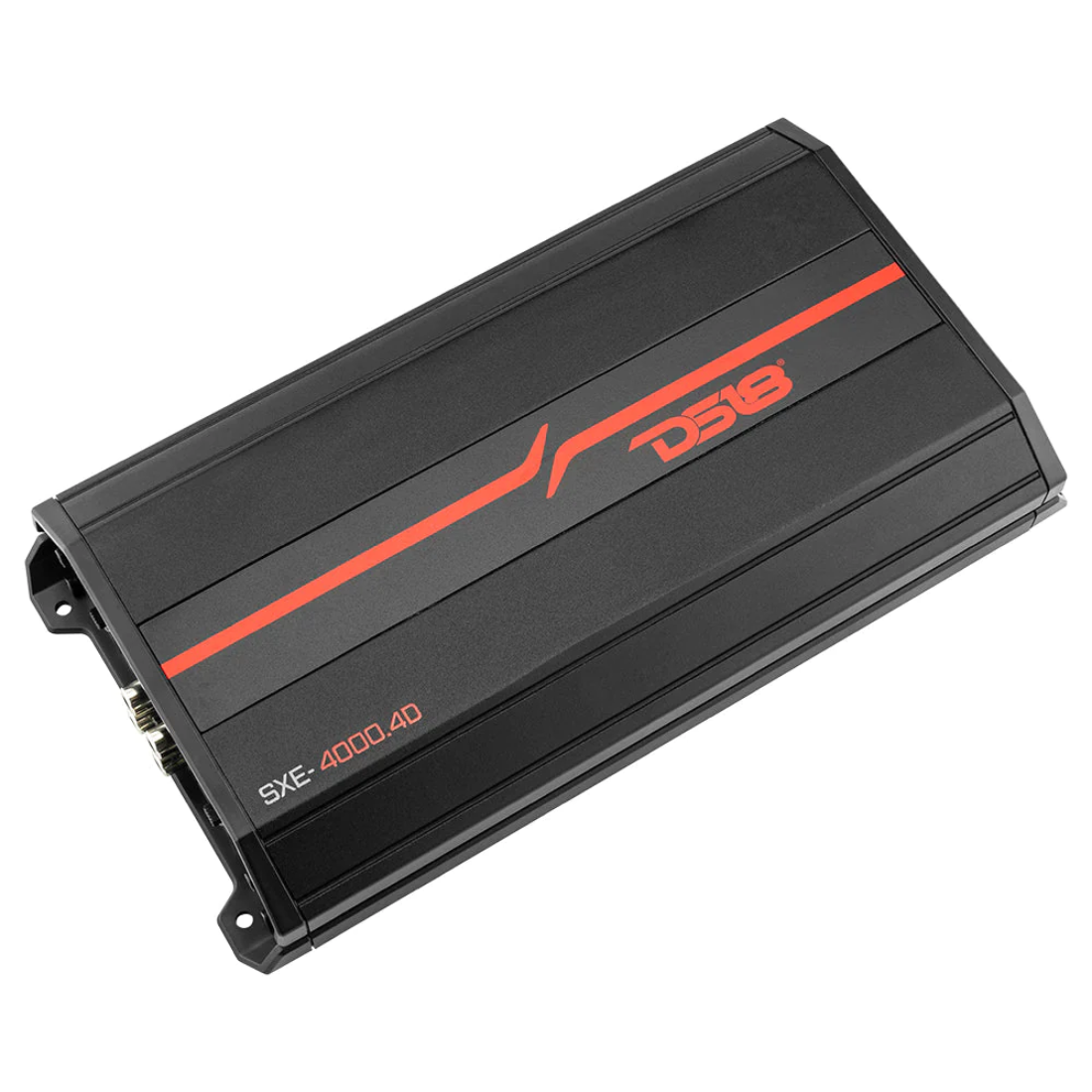

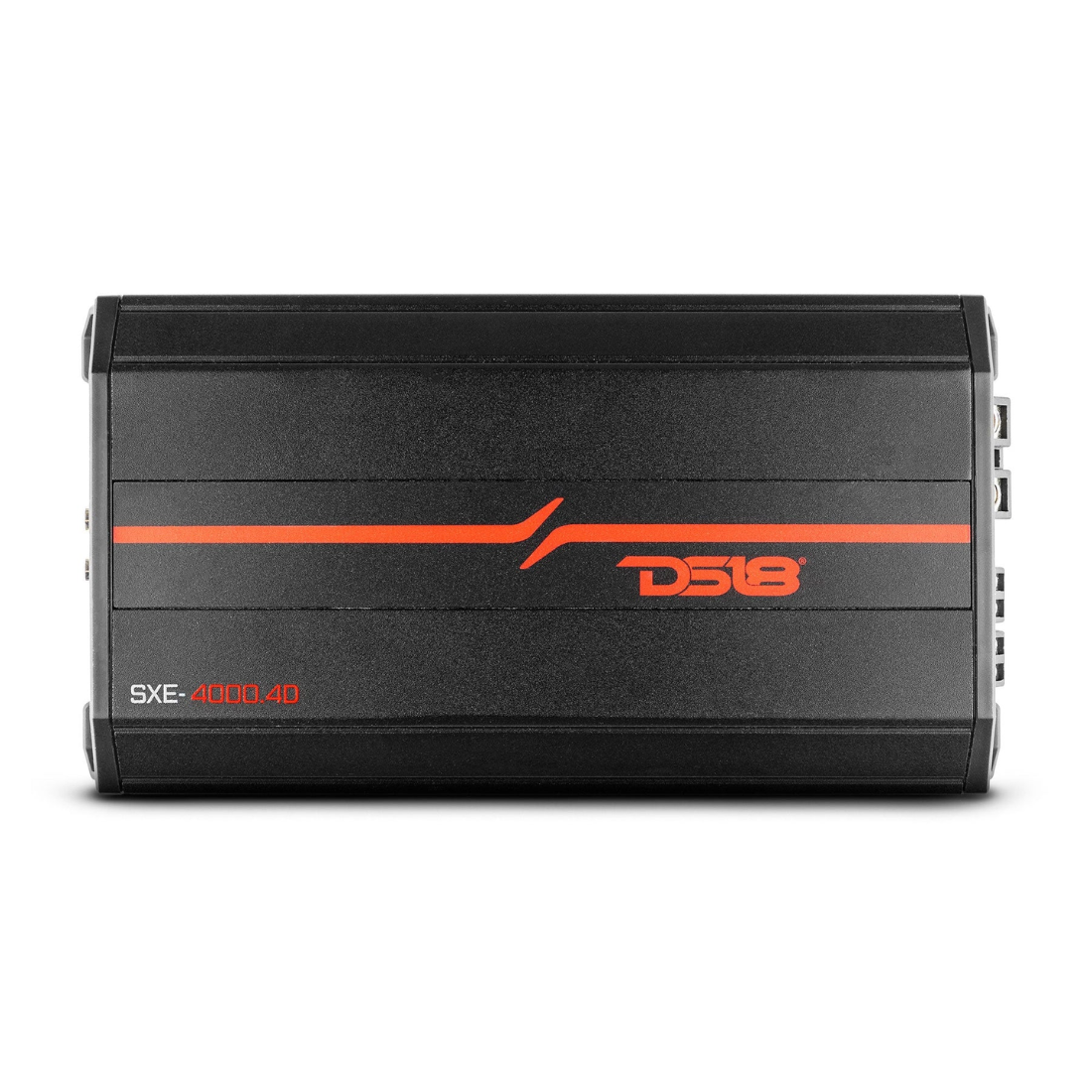

4000 Watts Max 4-Channel Class-D Full-Range Car Audio Amplifier (Black)

Highlights:

Compact size for easy installation anywhere

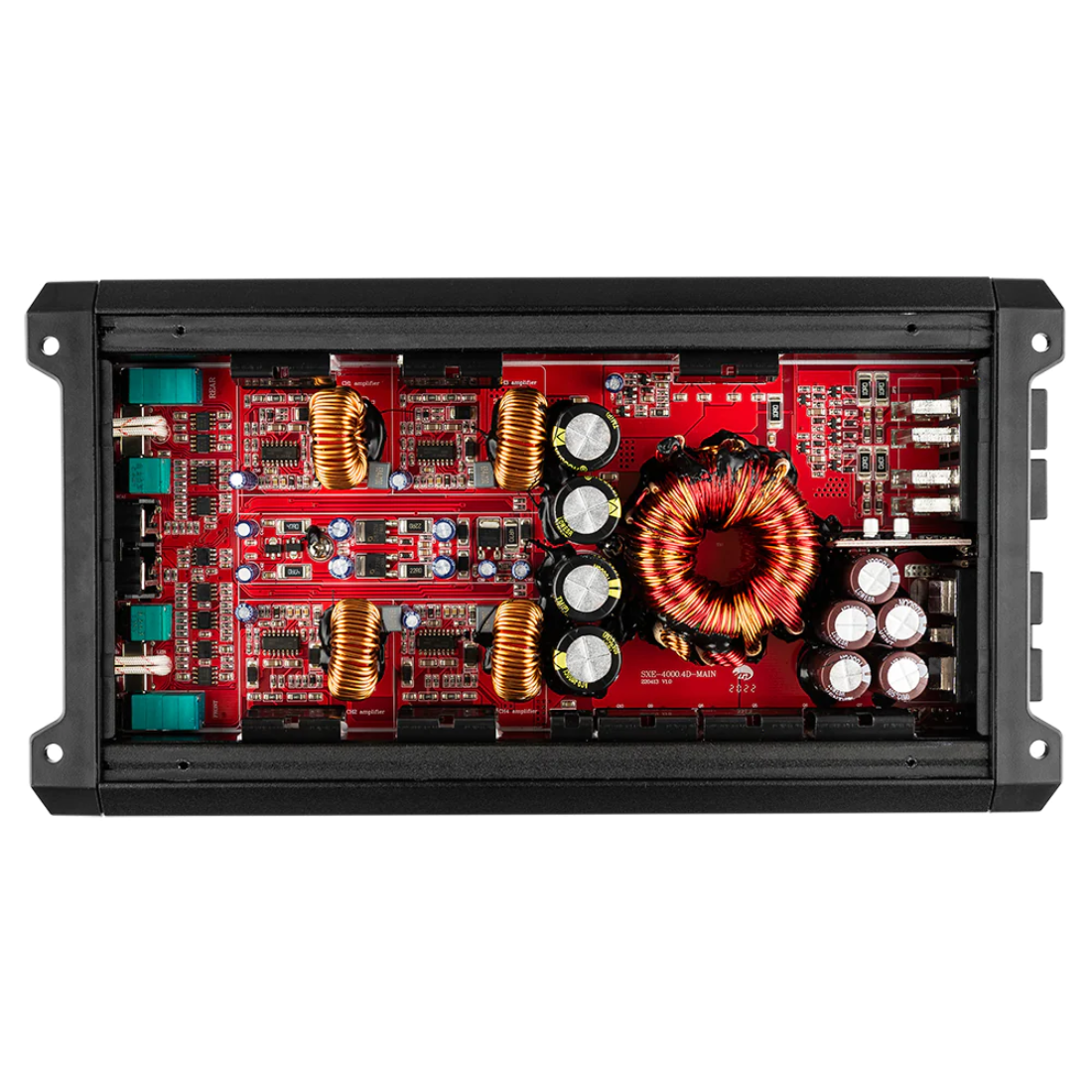

Stable Two or Four Layer-Traced PCB Design
Audio Precision Quality Control Verification
Full Adjustable HP/LP @ 12dB/oct Crossover
Various Forms of Electronic Protection

Key Features:

Amplifier Class: Digital (D)
Amplifier Type: Stereo Full Range
Number of Channels: 4
Minimum Impedance: 2 Ohms Stereo / 4 Ohms Bridge
Led Indicator: Power/Protect/Clip

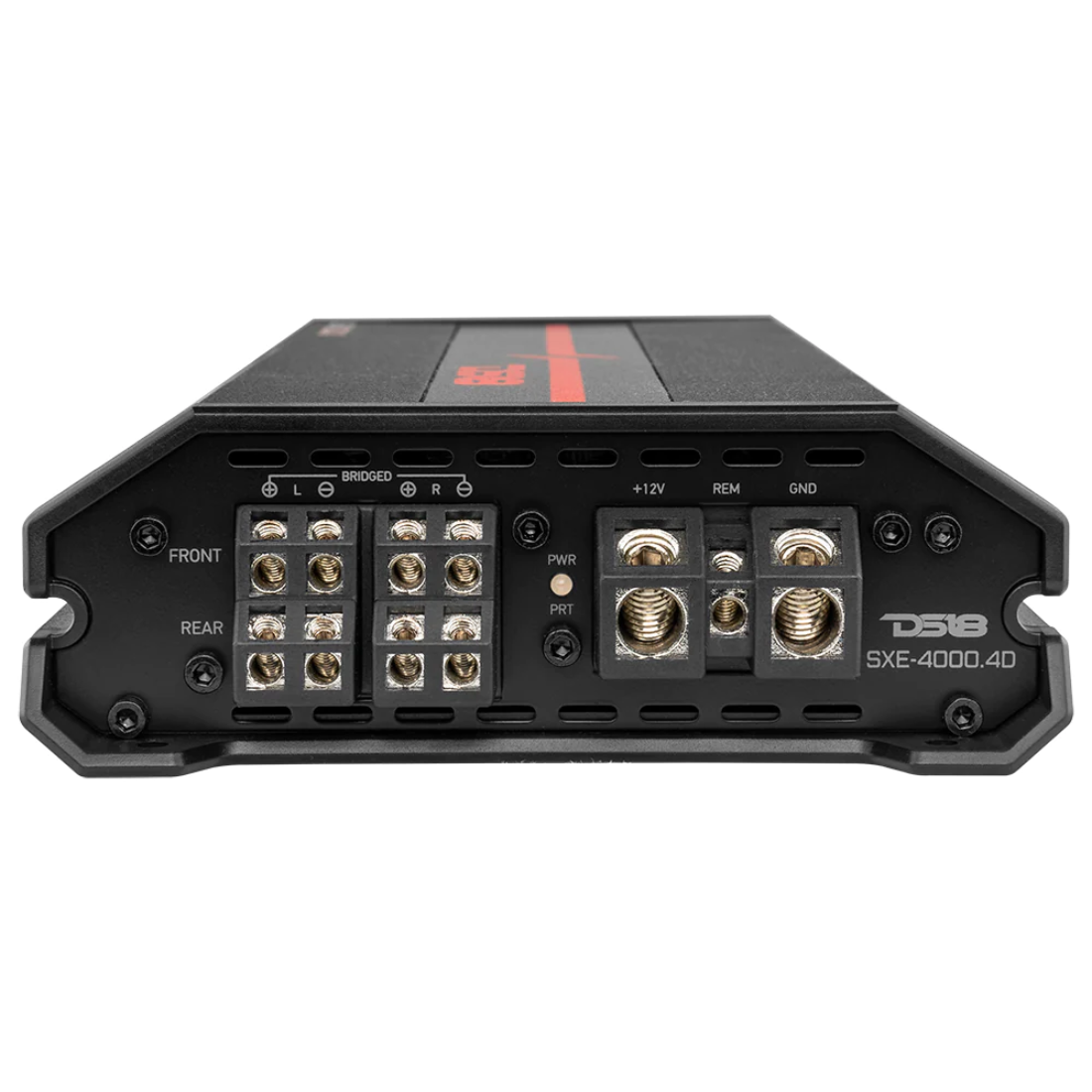

Power Input Terminal Size: 4 Ga
Fuse Size: External fuse
Remote Level Control: /
Cooling Fan: /
Voltmeter: /
Thermal Protection: Yes (80℃)
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes (16.5v)
Clipping Protection: Yes
Body Color / Finish: Black Brushed Aluminum

Power Features:

Total Watts (Peak): 4000W
RMS Power @ 4 ohms: 4 x 275W
RMS Power @ 2 ohms: 4 x 430W
RMS Power @ 1 ohm: /
RMS Power @ 4 ohms Bridge: 2 x 750W

Audio Features:

Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 90dB
Efficiency @ 4 ohms: 86%
Damping Factor: 140
Input Impedance: 20kΩ
Channel Separation: 45dB
Total Harmonic Distortion (THD): 0.05%
Low-Level Input Range: 200mV-5V
High-Level Input: /
Selectable X-Over: HPF/FULL/LPF
X-Over Filter Range: 40Hz-2KHz
Bass Boost Range: /
Bass Boost Frequency: /
Infrasonic Filter: /
Phase Selector: /

Measurement:

Overall Length: 10.6" / 269mm
Overall Wide: 5.5" / 140mm
Overall Height: 1.8" / 48mm
Heatsink Length: 9.1" / 232mm
Gross Single Unit Weight: 2.05Kg
